Project 004 – Onyx

After diving deep into the world of custom PC building, I fell in love with the FormD T1. Unfortunately, it’s notoriously difficult to get – but the almost identical NCASE T1 was available, so I ordered one. After weeks of waiting, the case finally arrived from China.

Once I started assembling it, I realized the stock AIO cover wasn’t what I wanted. So, I decided to create my own – and to do that, I bought a 3D printer. Yet another rabbit hole opened up, which has since become a whole new hobby.

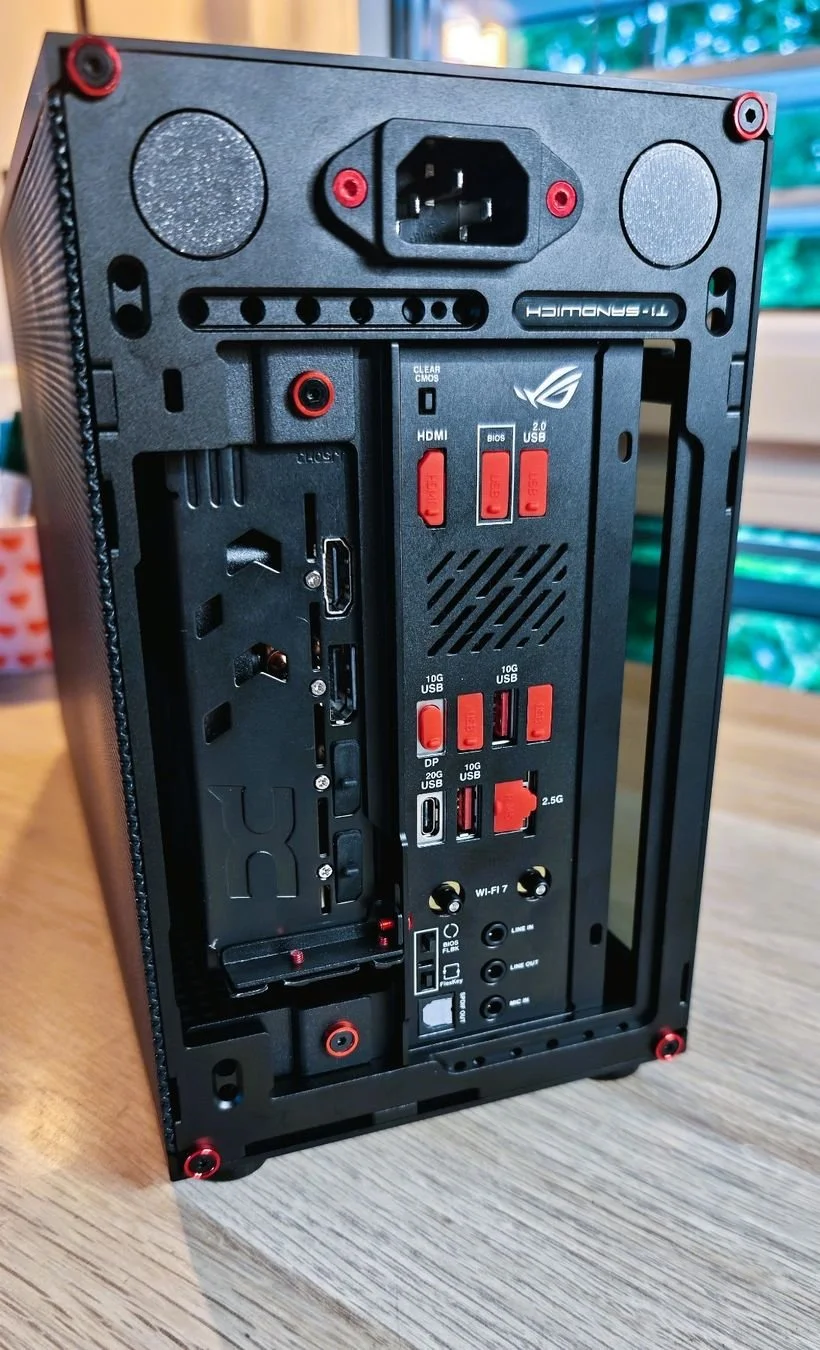

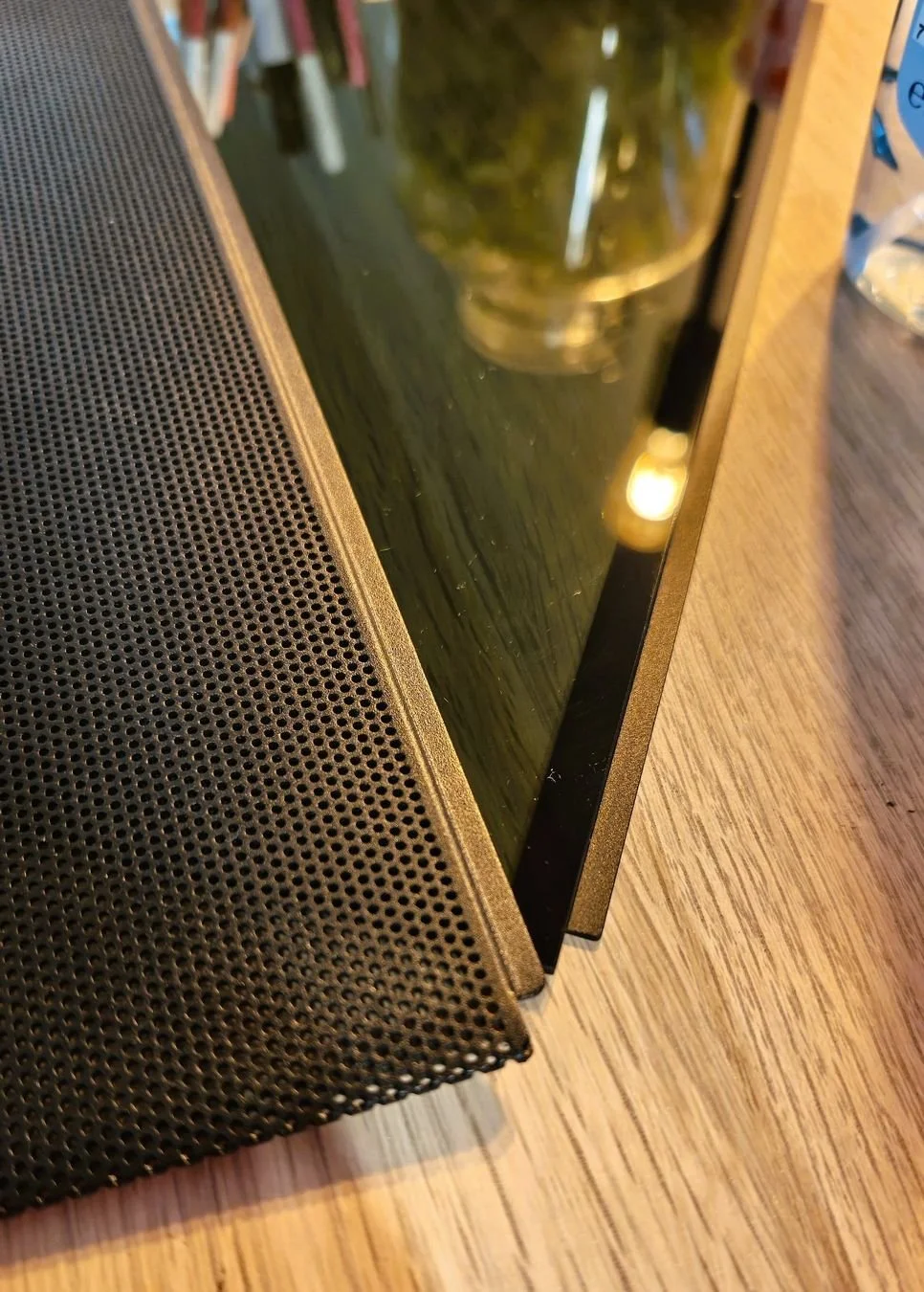

The details mattered just as much: I replaced the case screws with red anodized screws, perfectly complementing the red & black theme. I also made custom cables for the build, ensuring a clean and tailored look. To finish the design, I ordered an original tinted glass side panel directly from FormD, giving the system its final sleek touch.

The result is an absolute powerhouse in a small form factor – a true dream PC that has been my reliable daily companion for the last weeks.

Specifications

Case: NCASE T1 – Sandwich Kit (Black)

T1 Side Panels (tinted, ordered from FormD)

T1 Front Screw Bar

3× T1 Rear m19 Covers

Custom red anodized screws

CPU: AMD Ryzen 9 9900X (AM5, 12-Core, 4.40 GHz)

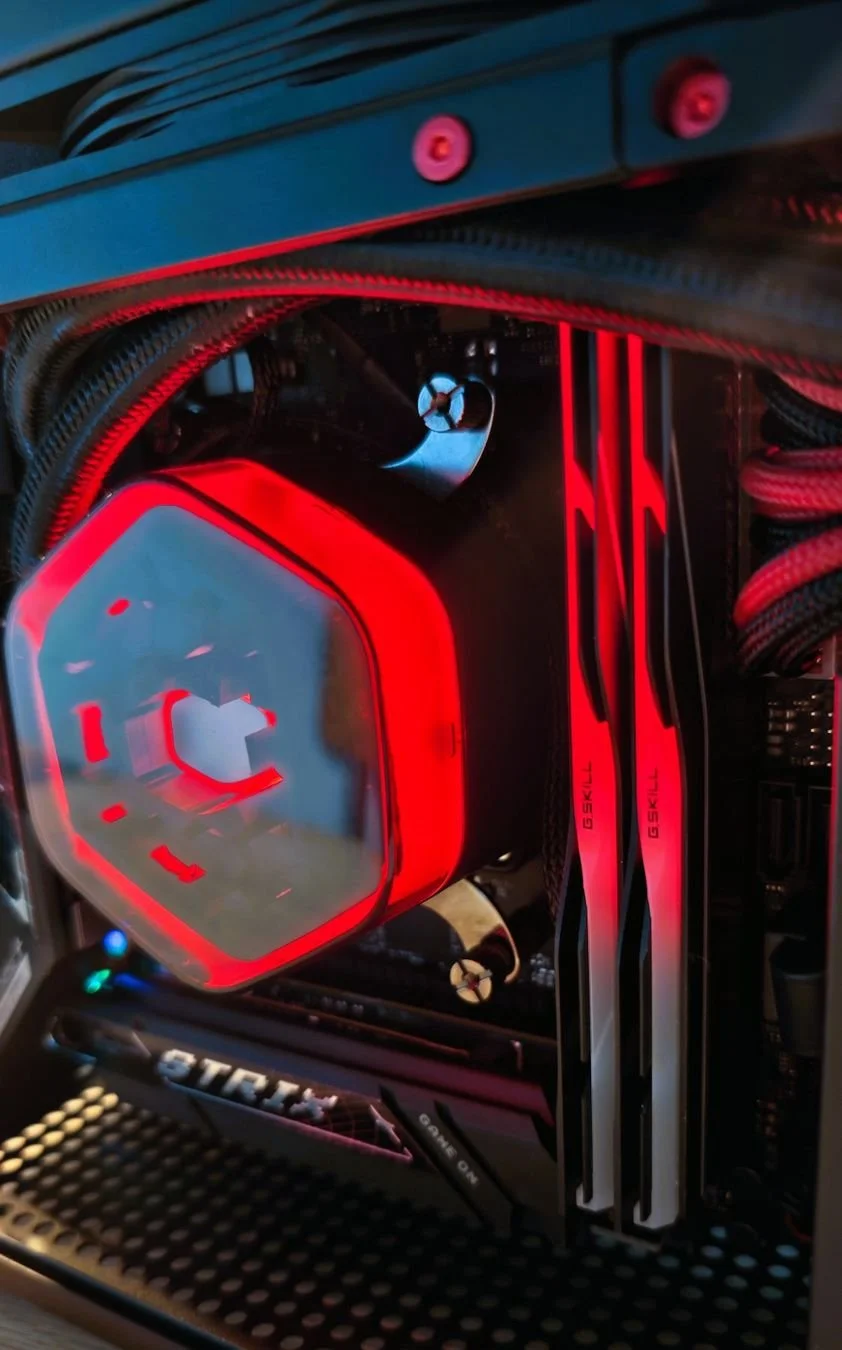

CPU Cooling:

Cooler Master MasterLiquid 240 Atmos (AIO)

Thermal Grizzly Contact Sealing Frame

Thermal Grizzly Carbonaut Thermal Pad (32×32×0.2 mm)

GPU: PowerColor Reaper Radeon RX 9070 XT

Motherboard: ASUS ROG STRIX B850-I GAMING WIFI (Mini-ITX, AM5)

RAM: G.Skill Trident Z5 Neo RGB 64 GB (2×32 GB, DDR5-6000 MHz)

Storage: Samsung 990 Pro 1TB M.2 2280

PSU: Cooler Master V850 SFX GoldCooling & Fans:

  • SilverStone Air Slimmer 120

  • Fan grills (120 mm, black)

Cables & Accessories:

  • Custom handmade sleeved cables (red/black theme)

  • Max Hauri TD-Apparatekabel

  • Miscellaneous accessories & small parts

Software: Windows 11 Pro (OEM Key)
